Rotary and Push Button Dimmer 250W Max LED

Rotary and Push Button Dimmer 250W Max LED

  • Model NO. AU-P3
  • Minimum order quantity:1000 pieces
  • Accept Min order:No
  • Supply Ability:50000 pieces / Month
  • Country of Origin:Guangdong China
  • Stock Time:30 Days
Basic Information
  • Color:Green; Blue; Orange
  • Voltage:230v; 220V; 240v
  • Place of Origin:GuangDong China
  • Brand Name:HZC
  • Model Number:AU-P3
  • Type:Manual Switch
  • Max. Load Power:LED 250W; INC&HAL 400W
  • Voltage:220V
Product Description

Technical Data
AU standard 250W pushbutton and rotary dimmer for led lamps

Model No.AU-P3
DescriptionRotary and Push Button Dimmer
Input Voltage220-240V
Input Frequency50Hz
LoadLED250VA
Incandescent400W
Halogen400W
Dimming ModeTrailing edge
Control WayTwo way
MaterialPC
ColorGreen
Weight(g)32.82
Dimension(mm)23.5*23.5*56.22
CertificationSAA

Features

The AU-P3 is a trailing edge push button rotary LED Dimmer Switch. Two way control enables customers to control lamps from different places. Backlight gives out soft glow in the darkness, which you could find dimmer quickly with. Load voltage for incandescent and Halogen is 400VA and LED is 350W.

Key features:
• Control way: Two ways
• Dimming range: 5-400VA
• Backlight enables quick find in darkness
• Zero noise and flicker-free dimming
• Easy retrofit with two wires connected
• Max. & Min. Brightness setting prevent flicker
• Over-temperature, overload & over-current protection
• Memory function available

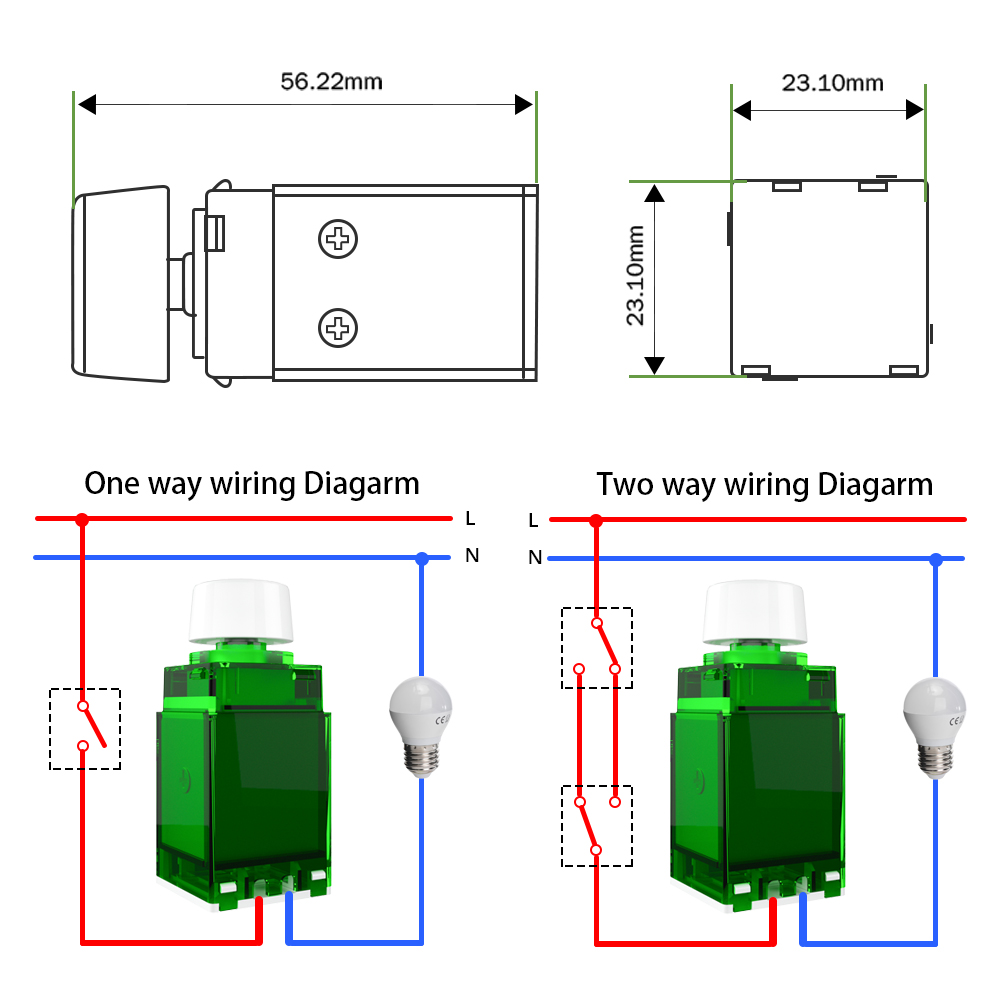

Wiring Options

Product Dimension
