Plug In Zigbee Dimmer Switch

Plug In Zigbee Dimmer Switch

  • Model NO. D080-ZG
  • Minimum order quantity:1000 pieces
  • Accept Min order:No
  • Supply Ability:20000 pieces / Month
  • Country of Origin:GuangDong China
  • Stock Time:30 Days
Basic Information
  • Color:White
  • Voltage:230v; 220V; 240v
  • Place of Origin:GuangDong China
  • Brand Name:HZC
  • Model Number:D080-ZG
  • Type:Remote Control
  • Max. Load Power:100W
  • Voltage:220V
Product Description

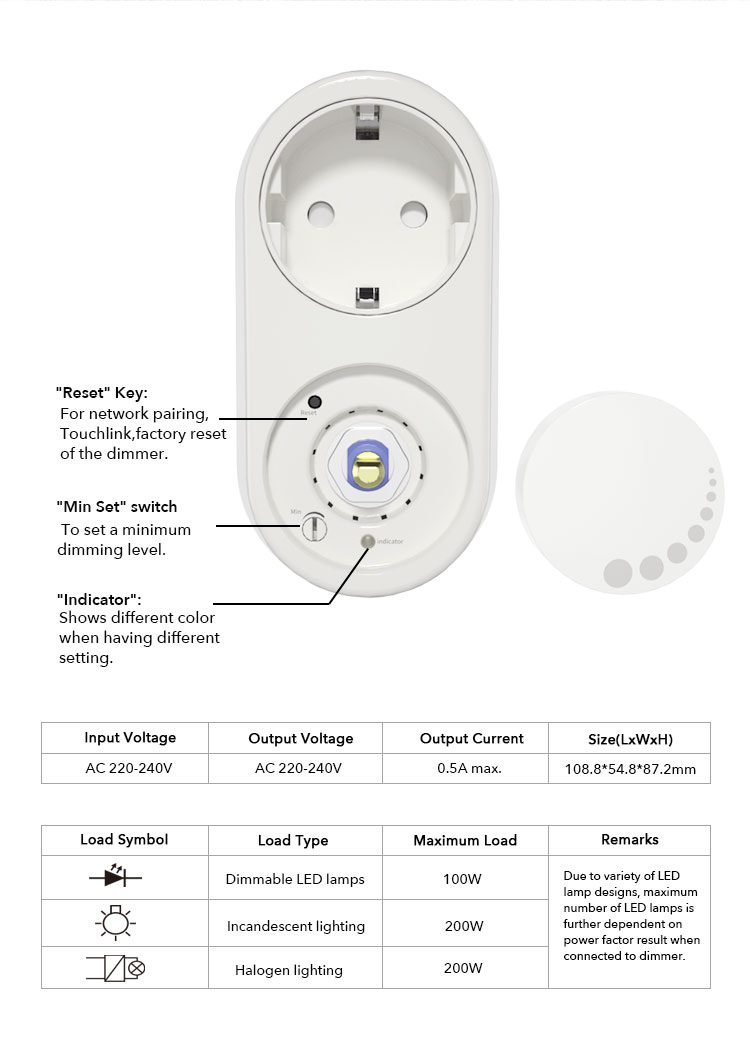

Technical Data
EU 220~240V Trailing edge Plug In Dimmer Switch Zigbee 3.0 controller for Led lamps

Zigbee Dimmer Switch Can be controlled by universal 220V-240V input single wire push switch.

Model No.D080-ZG
DescriptionPlug in Zigbee Led Dimmer Switch
Input Voltage220-240V
Input Frequency50Hz
LoadLED100VA
Incandescent200W
Halogen200W
Dimming ModeTrailing edge(R,C)
Control WayOne way
MaterialPC
ColorWhite
Weight(g)104.68
Dimension(mm)108.8*54.8*87.2
CertificationCE

Product Description

• ZigBee AC phase cut dimmer based on latest ZigBee 3.0 protocol
• 220V-240V AC Input and Output Voltage
• Supports resistive loads and capacitive loads
• Making table lamps to be smart lighting.
• Trailing edge control
• Enables to control ON/OFF and light intensity of connected triac dimmable led light or led driver
• ZigBee end device that supports Touchlink commissioning
• Can directly pair to a compatible ZigBee remote via Touchlink without coordinator
• Supports self-forming zigbee network without coordinator and add other devices to the network
• Supports find and bind mode to bind a ZigBee remote

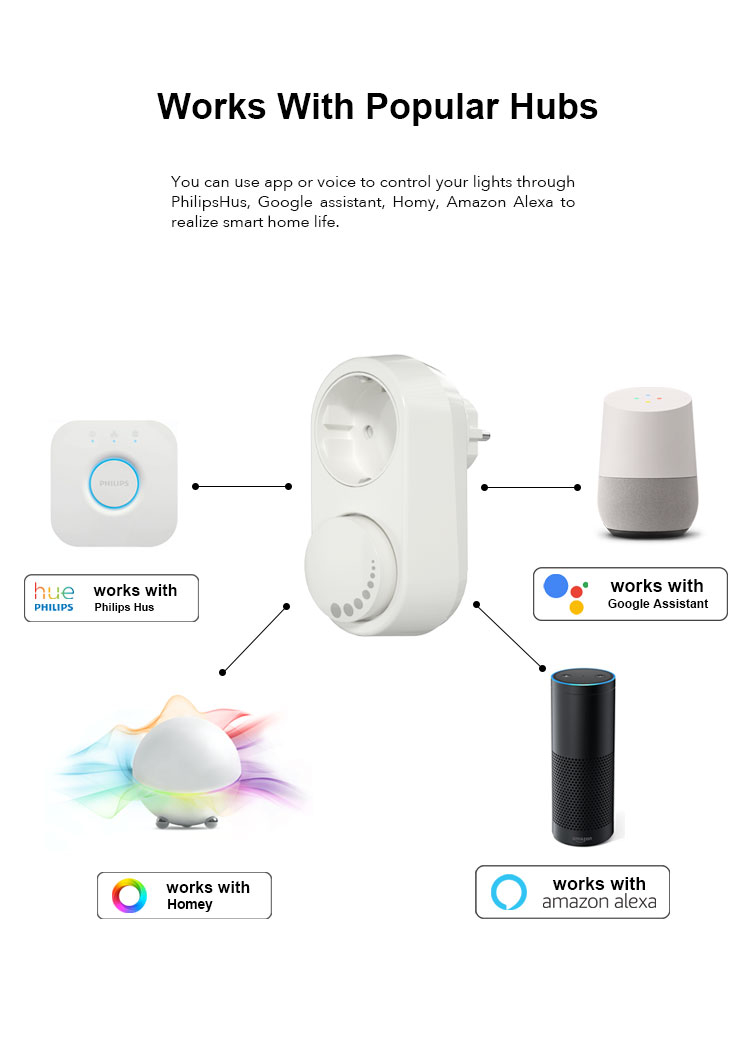

• Compatible with European trendy ZigBee gateway products
• Can be controlled by universal 220V-240V input single wire push switch
• Radio Frequency : 2.4GHz
• Waterproof grade: IP20
