Model NO.
Y801-ZG
Delivery:
FOB
Minimum order quantity:
1000 pieces
Supply Ability:
30000 pieces / Month
Country of Origin:
GuangDong China
Stock Time:
30 Days

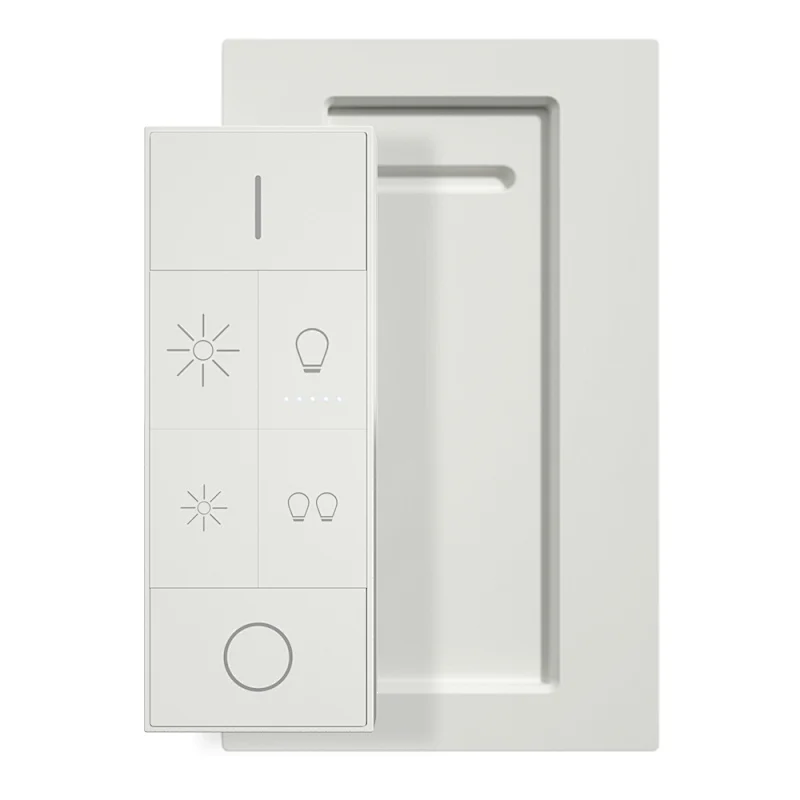

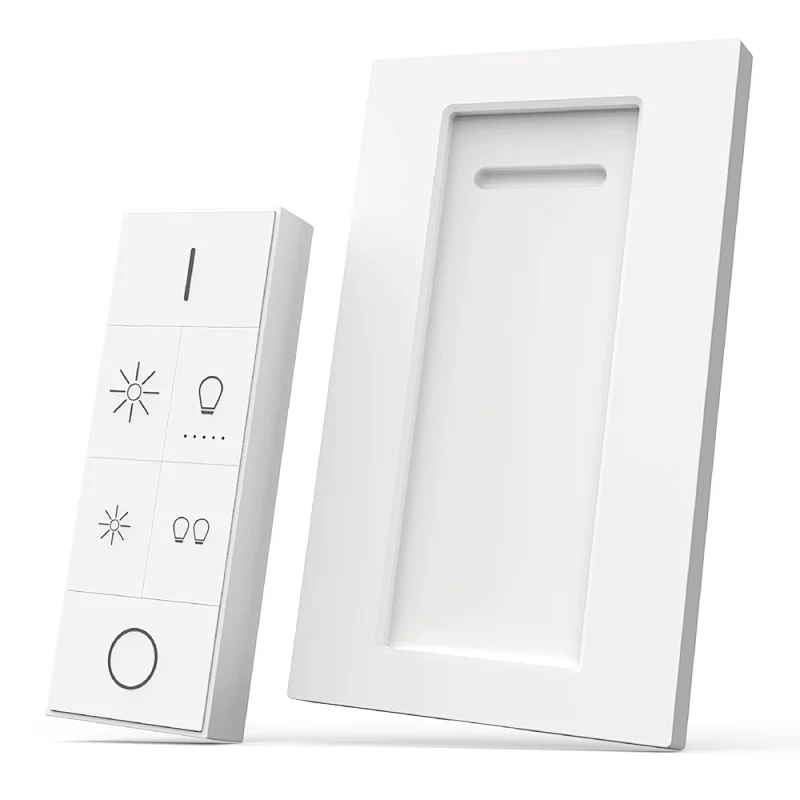

This remote control adopts the Zigbee 3.0 protocol, it can realize remote control of lights on, off, and dimming functions with the intelligent dimmer using Zigbee protocol.
Quantity:

1. Product data



This ZigBee Remote Controller adopts the Zigbee 3.0 protocol, it can realize remote control of lights on, off, and dimming functions with the intelligent dimmer using Zigbee protocol. One-to-many and many-to-many control modes can be realized through Philips hue's networking mode. This Remote Controller has 4 groups of channels to choose from, and each group can be bound to 30 dimming devices.

Product date

Input voltage

DC 3.0V, 1*CR2450 battery

Operating Voltage2.2V~3.5V
Operating temperature-10°C~+40°C
Working humidity10%~90%RH
Storage temperature-20°C~+60°C
Working temperature-20°C - 40°C
Storage humidity10%~90%RH
Dimensions92.2*34.9*14.0mm (Controller)117*70*8mm (Pedestal)
Wireless Range≥ 30m
IP rateIP20






  • Max. Load Power:For ZigBee Dimmer
  • Type:Remote Control
  • Model Number:Y801-ZG
  • Brand Name:HZC
  • Place of Origin:GuangDong China
  • Voltage:Other
  • Color:White
  • Y801-ZG-11(1).pdf:Downloads
