Technical Data
Global 110~240V Trailing edge Zigbee Rotary Cord Dimmer Switch For Table lamps.

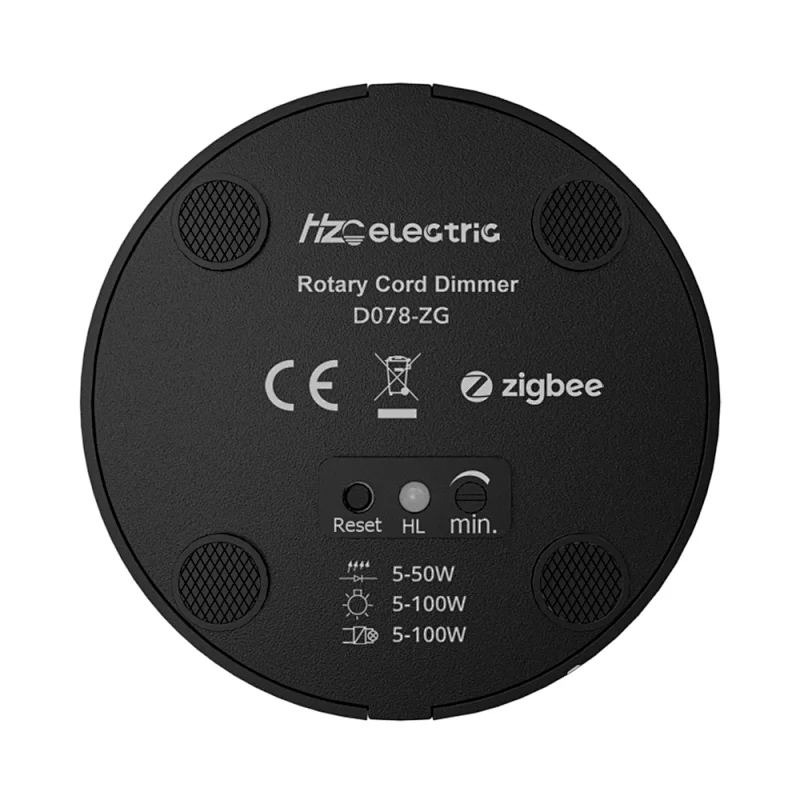

Model No. | D078-ZG |

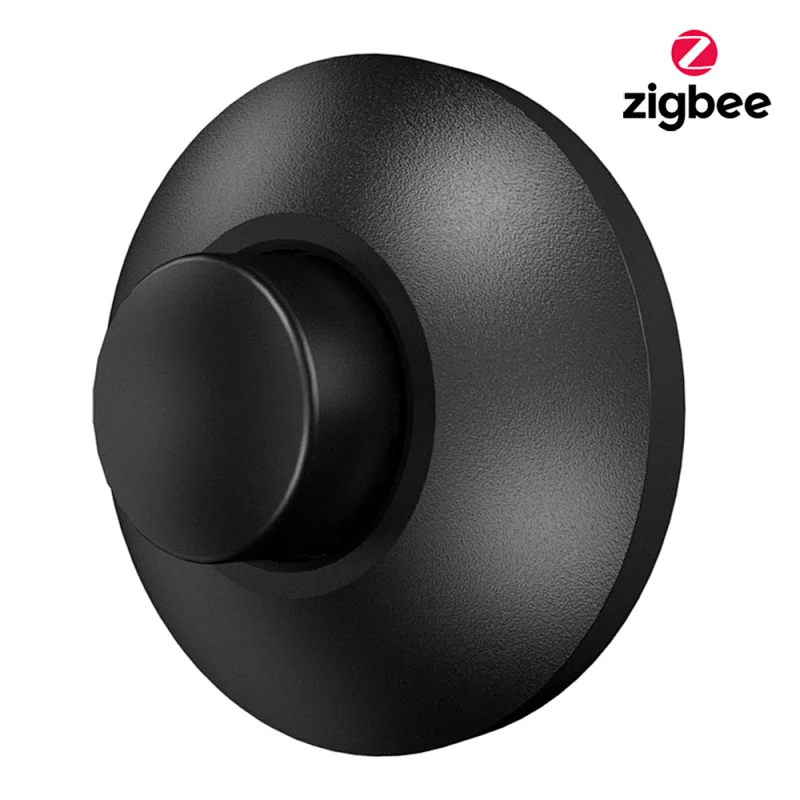

Description | Zigbee Rotary Cord Dimmer Switch |
Input Voltage | 110-240V |
Input Frequency | 50Hz |
Load | LED | 50VA |
Incandescent | 100W |
Halogen | 100W |
Dimming Mode | Trailing edge(R, C) |
Control Way | one-way |
Material | | PC |
Color | White |
Weight(g) | 58g |
Dimension(mm) | 75*75*15mm |
Certification | CE |
Product Description

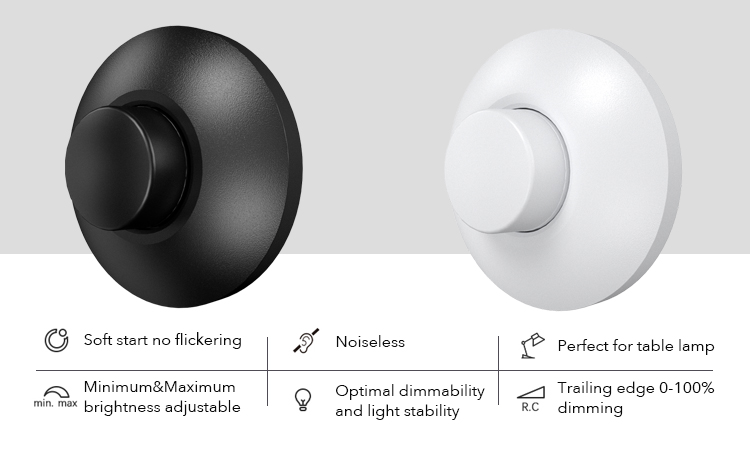

Cord Led Dimmer Switch with excellent compatibility to most Dimmable LED lamps also works perfectly with halogen or electronic transformer and incandescent lighting

1. Unscrew the closing screws F
2. Take out the front cover B and the knob A
3. Unscrew the cord anchorage C
4. Strip the cable to be connected

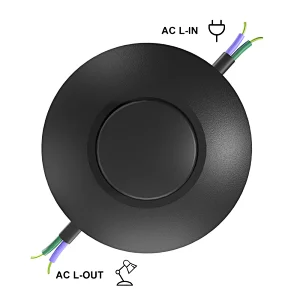

5. Connect supply electronic board
6. Connect lamp cable to the terminal identified by symbol of the electronic board
7. Mount cord anchorage C
8. Mount front B and back D, screwing the screws F
