Technical Data

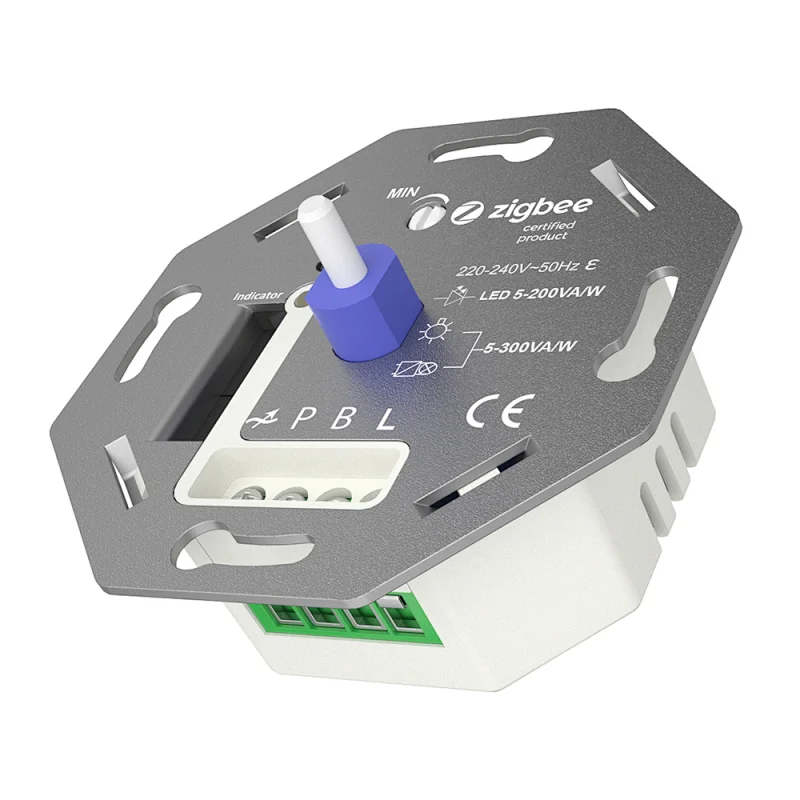

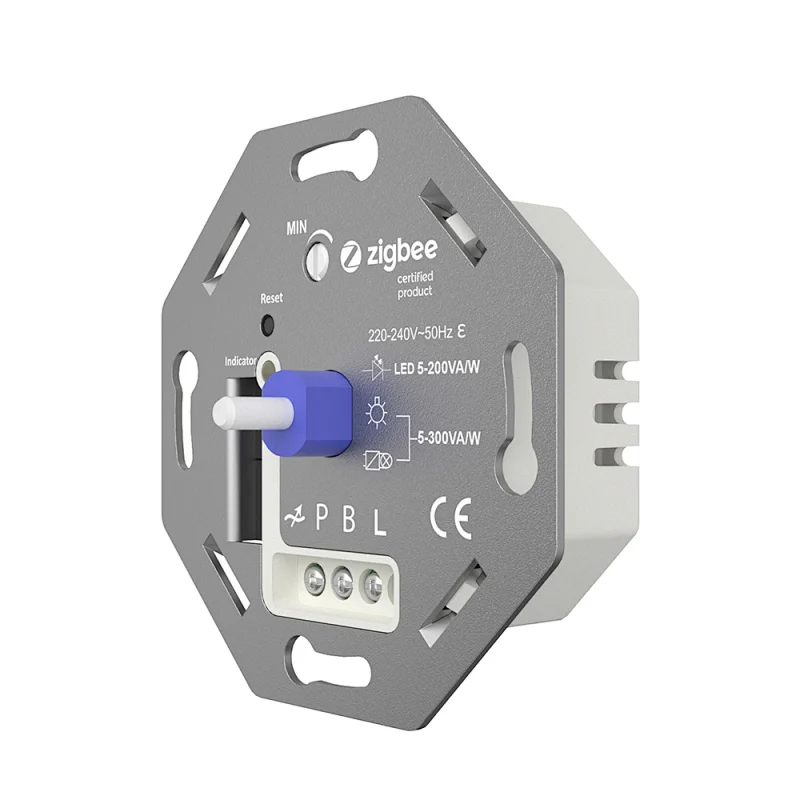

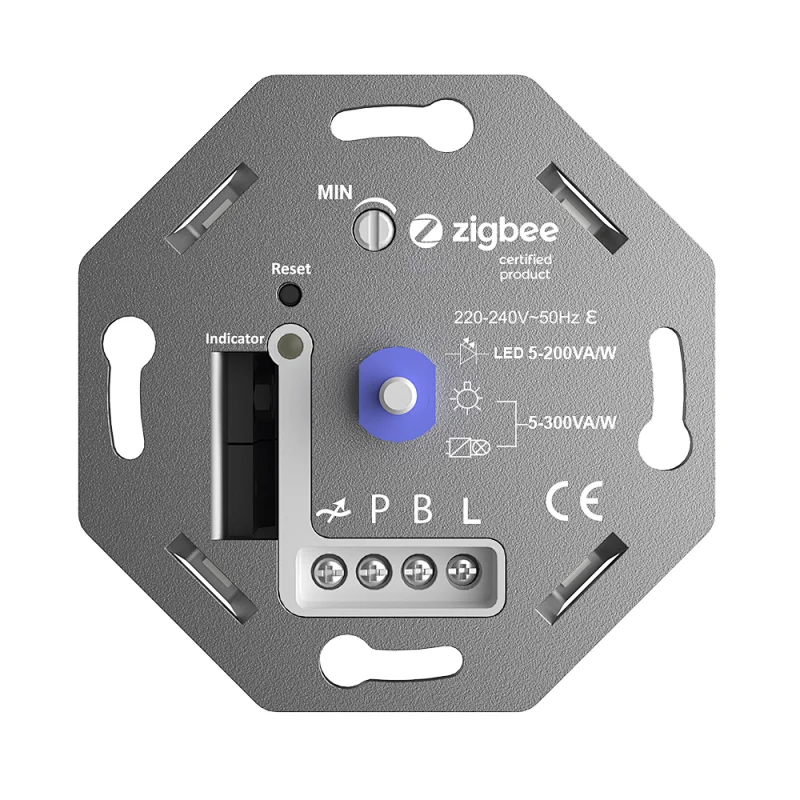

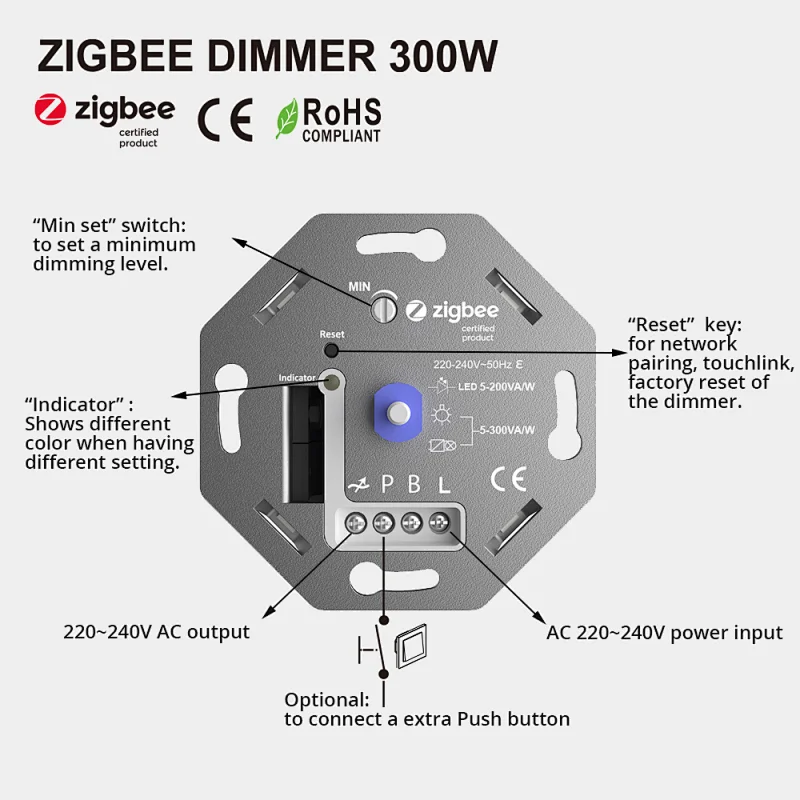

EU 220~240V Trailing edge Zigbee Dimmer Switch for Led lamps (Push ON/OFF & Rotary Dimmer Switch)
200W Led Dimmer Switch Can be controlled by a universal 220V-240V input single wire push switch.
| Model No. | D684E2-ZG | |
| Description | Rotary Zigbee Dimmer Switch | |
| Input Voltage | 220-240V | |
| Input Frequency | 50Hz | |
| Load | LED | 200VA |
| Incandescent | 300W | |
| Halogen | 300W | |
| Dimming Mode | Trailing edge(R,C) | |
| Control Way | Mutilway | |
| Material | PC | |
| Color | White | |
| Weight(g) | 104.68 | |

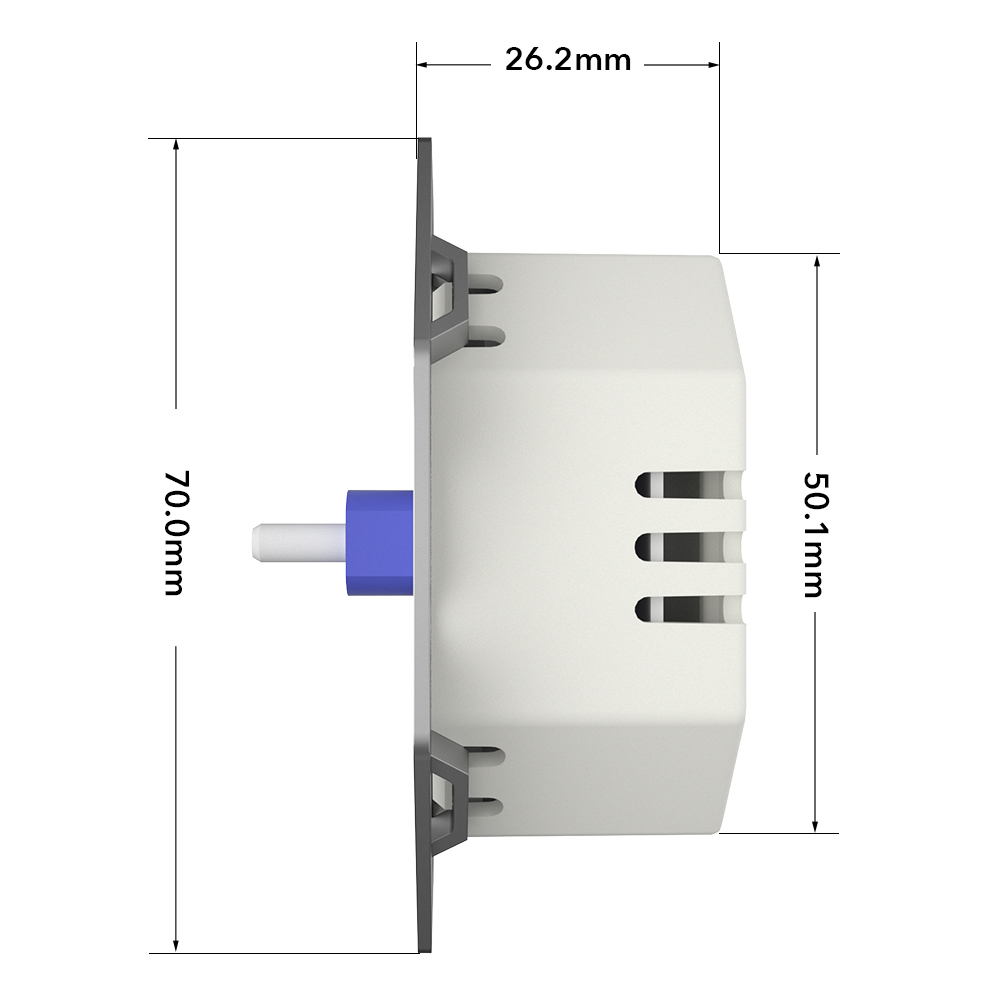

| Dimension(mm) | 78*78*54mm | |
| Certification | CE | |
Product Description
- Zigbee support
- Voice support (Amazon Alexa & Google Assistant Home)
- Suitable for several home automation apps

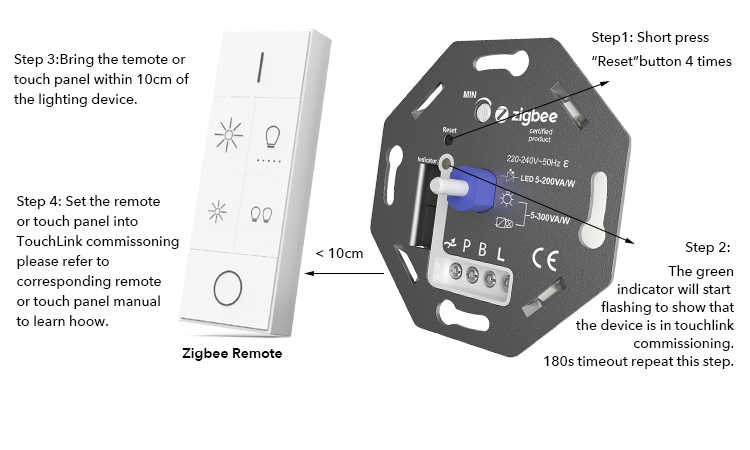

- Support TouchLink, Find and bind
- Push / rotary button; Rotary Dimmer Switch
- Suitable for 5-200VA LED; 200W Led Dimmer Switch
- Suitable for all well-known brands of cover frames
- Optimal dimmable & light stability
- MIN and MAX light adjustment options
- Suitable for 90% of dimmable LEDs
- Installation with provided 2 wires (no neutral wire required)
- Soft start system
- Noiseless dimming, no flicker
- Suitable for surface-mounted boxes & flush-mounted boxes with or without screw hole
