Z-wave Dimmer Switch 200W Max LED
Z-wave Dimmer Switch 200W Max LED
Z-wave Dimmer Switch 200W Max LED
Z-wave Dimmer Switch 200W Max LED
Z-wave Dimmer Switch 200W Max LED
Z-wave Dimmer Switch 200W Max LED
Z-wave Dimmer Switch 200W Max LED
Z-wave Dimmer Switch 200W Max LED
Z-wave Dimmer Switch 200W Max LED
Z-wave Dimmer Switch 200W Max LED
Z-wave Dimmer Switch 200W Max LED

Z-wave Dimmer Switch 200W Max LED

Model NO.
D682E2-ZV
Delivery:
FOB
Minimum order quantity:
1000 pieces
Supply Ability:
20000 pieces / Month
Country of Origin:
GuangDong China
Stock Time:
30 Days
• No neutral required, easy for installation.
• Smooth dimming, no flickers, no noise.
• Over-temperature, over current protection
• Soft start function to protect the lamp.
• With Min. brightness adjustment, to achieve the optimum dimming range for a particular load.
• Z-Wave plus, can be controlled by cellphone, Google home, Amazon Alexa and multiple gateways such as Philips hue, Smartthings, etc.
• Support to restore the factory setting.
Quantity:

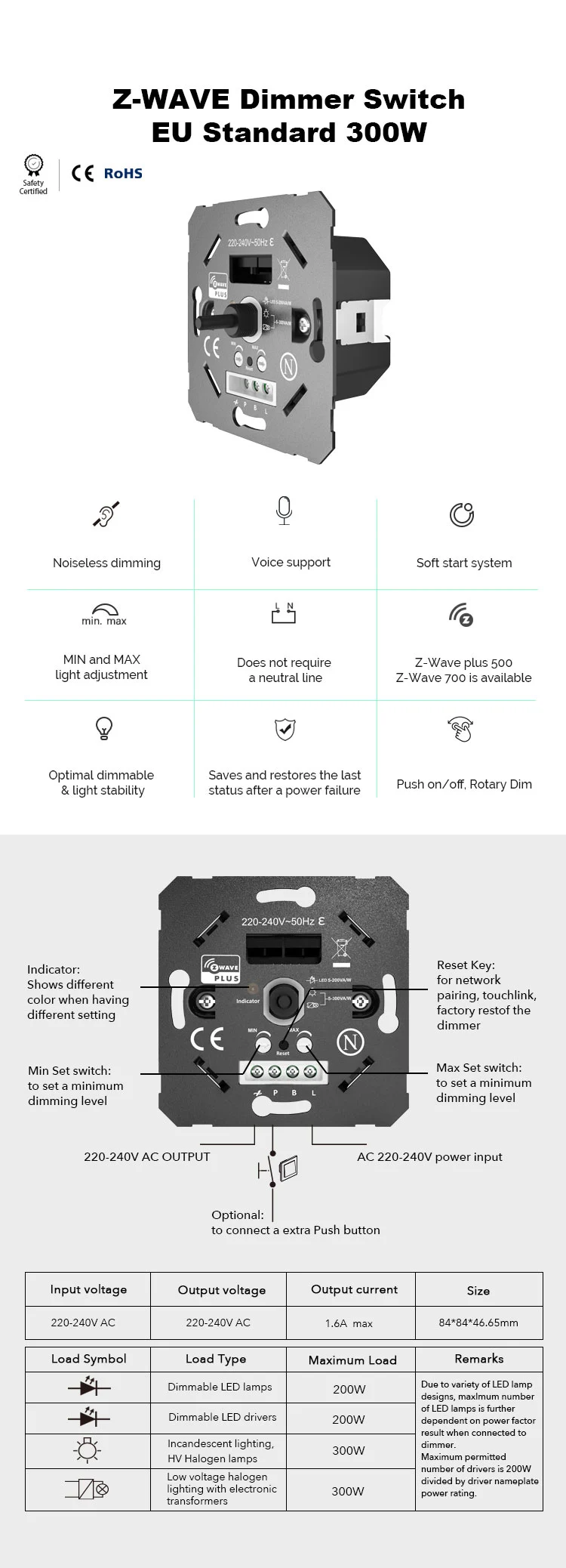

Technical Data

Model No.D682E2-ZV(EU-P10)
DescriptionRotary Z-wave Dimmer Switch 200W Max LED
Input Voltage220-240V
Input Frequency50Hz
LoadLED200VA
Incandescent300W
Halogen300W
Dimming ModeTrailing edge(R,C)
Control WayOne way or Multi-way
MaterialHeatsinkAluminum
Bottom CasePC
ColorWhite
Weight(g)60.51
Dimension(mm)70.6*70.6*51.5
CertificationCE

Features

• Rotary and push button trailing edge LED Dimmer.

• Inbuilt Z-wave plus, working with Fibaro, Smartthing, Wink, Vera etc.

• No neutral required, suitable for newly built and retrofitted.

• One way / Multiway (when the P port is connected to push switches)

• Have a reset function, to restore the factory setting.

• With minimum and maximum brightness adjustment, to achieve the optimum

dimming range.

• Compatible with most brand cover frames like Busch Jaeger, Jung, Berker etc.

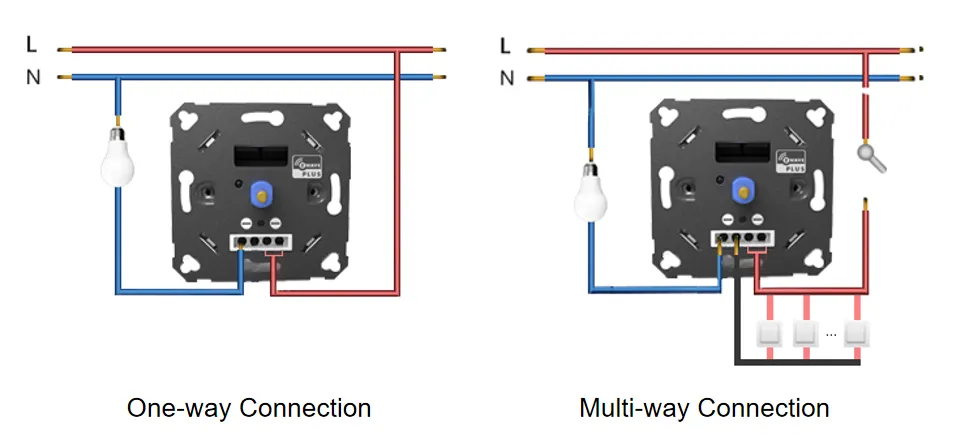

Wiring Options

Product Dimension



EU Standard 220V~240V 50Hz trailing edge Z-wave Smart Dimmer Switch for led lights. LED Dimmer Max. Load Power 300W for led lamps.

  • Voltage:220V
  • Max. Load Power:300W
  • Type:Remote Control
  • Model Number:D682E2-ZV
  • Brand Name:HZC
  • Place of Origin:GuangDong China
  • Voltage:230v; 220V; 240v
  • Color:GRAY
